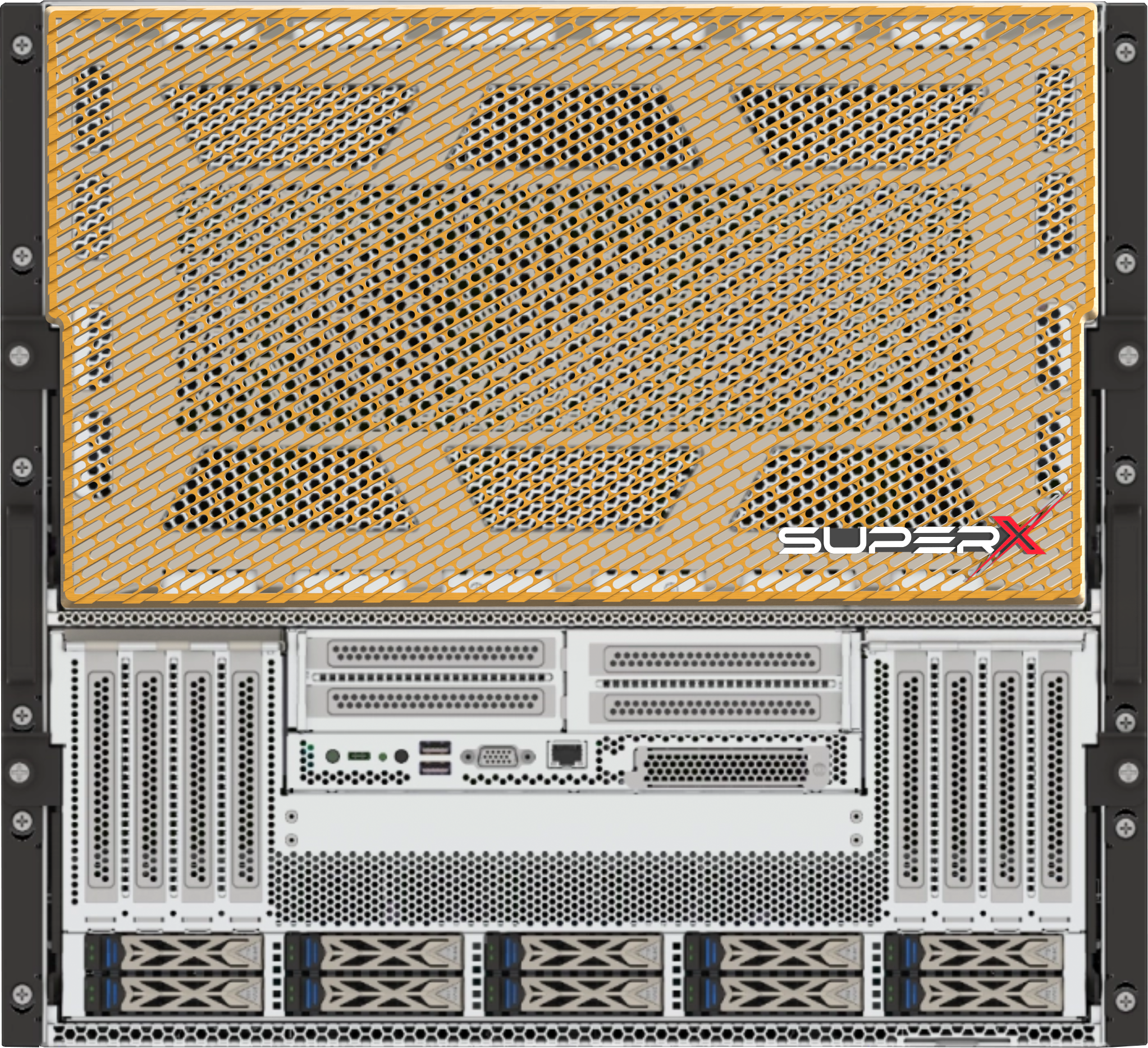

B200
The SuperX B200 is engineered for peak AI performance, equipped with 8 NVIDIA® Blackwell B200 GPUs connected with 5th-Gen NVLink, 1,440 GB of ultra-fast HBM3E memory, and powerful 6th-Gen Intel® Xeon® processors - delivering exceptional AI performance in a compact 10U form factor.
Highlights
Performance Architecture
- Based on 6th Gen Intel® Xeon® Scalable Processors, up to 350 W TDP
- 32 DIMM slots supporting RDIMM up to 6400 MT/s, MRDIMMs up to 8000 MT/s
Flexible Configuration
- CPU to Switch flexible link bandwidth (X16 or X32)
- Supports full-height and half-height NIC cards
For New Data Center
- Supports front IO access
- N+N PSU Redundant
- High-efficiency thermal solution for power saving
- High-efficiency DC/DC solution
Technical Specifications
| System Dimension | ·8U|·447x351x923mm(L*W*H) |
|---|---|
| CPU | ·Intel@ Xeon@6 Processors |Intel@Xeon@6700-Series Processors |Intel@Xeon@6500-Series Prcessorss |· Dual processor, TDP up to 350W |
| Socket | ·2xLGA 4710 |·Socket E2 |
| Chipset | System on Chip |
| Security | ·UEFI Secure Boot |·SNMP Support:V3 |
| Memory | ·32 x DIMM slots |·DDR5 memory supported |·8-channel memory per processor |·RDIMM: Up to 6400 MT/s (1DPC). 5200 MT/s (2DPC) |·MRDIMM: Up to 8000 MT/s |
| LAN | Front(I/O board-CFPG440): |·2x10Gb/s LAN(1x Intel@X710-AT2) Support NCSI functicn |·1x10/100/1000 Mbps Management LAN Rear (MLAN board-CDB66): |·1x10/100/1000 Mbps Management LAN |
| Video | ·Integrated in Aspeed@AST2600 |1xVGA port |
| Storage | Front hot-swap: |·8x2.5" Gen5 NVMe |(NVMe from PEX89104) | |Internal M.2: |·1xM.2(2280/22110) ,PCIe Gen5 x 4,from CPU 1 |·1xM.2(2280/22110), PCIe Gen5 x 2,from CPU 1 |
| GPU | NVIDIA HGX'" B200 with 8 x SXM GPUs |
| Expansion Slot | ·PCIe Bridge Board-CBG76: |8xFHHLx16 (Gen5x16), from PEX89104 |·PCIe Bridge Board-CBG045x2: |4xFHHLx16(Gen5x16), from PEX89048 |
| Front I/O | I/O board-CFG404: |·2xUSB 3.2 Gen1 ports(Type-A) |·1xVGA port |·2xRJ45 ports |·1xMLAN port (default) |·1xPower button with LED |·1xID button with LED |·1xNMI button |·1xRest button |·1xStorage activity LED |·1xSystem status LED |
| Rear I/O | MLAN board-CDB66: |·1xMLAN port |
| Power Supply | ·6+6 3000W 80 PLUS Tilanium redundant |power supplies [1] |[1]The system power supply requires C19 power cord |
| Form Factor | 8U Rackmount |
|---|---|
| Dimension | 930x448x353.6mm(36.6"x17.6" x13.9") |
| Button | Power button w/LED,reset button, |NMI button,UID button |
| LED | System fault LED,hard drive activity LED |
| I/O Port | ·2 RJ45 (1GbE) by Intel®i350,share with rear I/O |·1 Dedicated IPMI, shares with rear I/O |·4 Type-A(USB3.2 Gen1) |·1 DB15(VGA) |
| Front Side Drive Bay | ·8 Hot-swap 2.5" NVMe (PCIe5.0 x 4) |drive bays from PCIe switch |·2 Hot-swap 2.5" NVMe (PCIe5.0 x 4)/SATA |drive bays form CPU |
| Internal Side | ·1 M-key (PCIe3.0x2 or SATA 6Gb/s), |supports 2280/22110 form factor[PCH] |·1 M-key (PCIe3.0x4), supports 2280/22110 |form factor[PCH] |
| Power Supply Type | 6+6 CRPS |
| Output Watt | 3002.4W@220-240Vac input |2900W@200-220Vac input |
| Efficiency | 80-PLUS Titanium |
| AC Input | 200-240Vrms, 50/60Hz |
| System Fan | ·29 PWM 80 x 80mm fans |·4 PWM 40 x40mm fans |
| GPU | NVIDIA®HGX B200 8-GPU with NVIDIA® NVSwitch™ |
| CPU | Supports 5th and 4th Gen |Intel® Xeon® Scalable Processors |
| Socket | Dual Socket E(LGA4677) |
| Thermal Design Power | Up to 350W |
| Chipset | C741 |
| Supported DIMM Quantity | 16+16 DIMM slots (2DPC) |
| Max Capacity per DIMM | ·RDIMM:96GB |·RDIMM-3DS:2H-128GB/4H-256GB |
| PCIe x16 | Rear: |·8 HHHL PCIe5.0x16 |·2 FHHL PCIe5.0x16 |
| Additional GbE Controller | Intel® i350:2 RJ45 (1GbE) |
| BMC Controller | ASPEED AST2600 |
| IPMI Dedicated Glan | ·1 Realtek RTL8211F for dedicated management GLAN |
| Controller | ASPEED AST2600 |
| VRAM | DDR4 512MB |
| UID Button/LED | 1 UID button |
| VGA Port | 1 DB15 (VGA) |
| USB32 Gen1 Port | 2 Type-A (USB32 Gen1) |
| RJ45 | ·2 RJ45 (1GbE) by Intel®i350, |share with front panel |·1 Dedicated IPMI shares with front panel |
| Temperature Monitor | ·CPU,MB,card side temperature sensing |
| Fan | ·Fan tachometer |·CPU Quiet Fan (allows chassis fan |speed auto-adjust by CPU temperature) |·Fan multi-speed control |
